Antoine & Dalia Grelin

SH2-155 - The Cave Nebula Astrophotography from the backyard

Updated: Sep 28, 2023



The Cave Nebula (or Caldwell 9) is a diffuse emission nebula in the constellation Cepheus. It is one of the prettiest objects in the Sharpless catalog, and seems to "sit" in front of a field of blue Oxygen gas. Lot of dust can be seen in the object and it is also surrounded by some dark nebulae and interstellar dust lanes.


Object Designation: Sh2-155

Also known as: The Cave Nebula

Constellation: Cepheus

Object Type: Emission Nebula

Distance: 2,400 light-years away

Magnitude: 7.7

Discovered in: 1959


The Cave Nebula narrowband

The main star-forming region in the object (as seen on the left) is made up of double ionized hydrogen, that came from Cepheus B, a large molecular cloud home to all types of nebulae.


The Cave Nebula is faint, and is a challenge for beginner astrophotographers. We spent over 37 hours on this object to get a good result. It is best captured in narrowband with a high-power telescope. You will also need to spend a considerable amount of time on it, especially if you image from a light-polluted place like us.


You will find all our images below taken with different equipment and techniques. Notice how much dust is present all over the images, and how bright the star-forming region in the center is compared to the darker clouds of gas almost everywhere else in the frame!




The Cave Nebula Astrophotography in Dual-Band

September 2023


Three years after our first picture of the Cave Nebula, it was time to re-visit this target and this time capture using a different setup!


This time, we shot this Sh2-155 using a One-Shot-Color camera and a dual-band filter. I processed it in true-color so that it would look completely different than our previous image. It is mostly red and also looks very cool! This photograph was also taken from our Bortle 9 backyard in Las Vegas.


The Cave Nebula in true color from home

Mount: ZWO AM3

Guiding: Built into camera

Accessories: ZWO ASIAir Plus

Processing: Pixinsight, with RC-Astro plugins. Final Touches in Luminar Neo

ACQUISITION DETAILS:

Total Exposure Time: 12 hours

Exposure Time per frame: 10 minutes

Gain: 26




The Cave Nebula Astrophotography in Narrowband

September 2020


This is most likely a work in progress as I am not 100% happy with the final result, despite the 37+ hours spent on the integration time. Who is to blame? The California wildfires!


This is our first image with a new telescope we are trying this year thanks to our awesome friend Mark! Note that we plan on re-shooting this image, specifically the Sii and Oiii channels as those were taken during the California fires "season" and thin layers of smoke were present in the sky during that time.


The Cave Nebula from our Bortle 9 backyard in narrowband

Sh2-155 Astrophotography in narrowband using the Stellarvue SVX130 and the ZWO ASI 1600MM


GEAR USED:

Telescope: Stellarvue SVX130

Processing: Pixinsight

ACQUISITION DETAILS:

Total Exposure Time: 37 hours and 15 minutes

Exposure Time per frame: 10 minutes

Filters: Chroma 3nm Ha/Sii/Oiii

Gain: 139

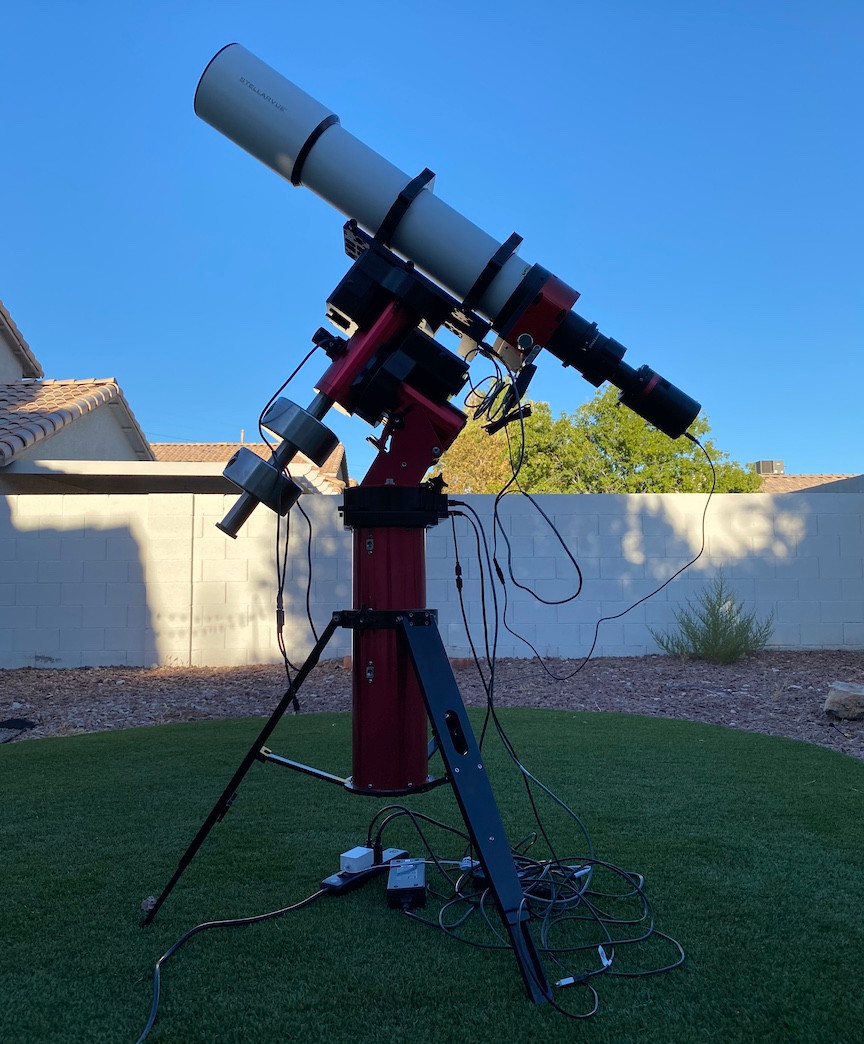

5" refractor telescope on MyT paramount mount

The telescope we used to capture the Cave Nebula is the Stellarvue SVX130, an upgrade from our Meade 115mm.


With the reducer, it has an almost identical field of view in terms of focal length (655mm vs 644mm) and the Cave Nebula fits really nicely!


Something absolutely awesome about this telescope is that it came with a Moonlite Nightcrawler focuser/rotator, and it has been working perfectly so far! Unlike our ZWO focuser, this one has zero backlash!






How to find the Cave Nebula?

How to find the Cave Nebula Sh2-155 in Cepheus, constellation map

The Cave Nebula is too dim to be seen with the naked eye, and is also just not bright enough to be spotted with binoculars. You can observe it with a telescope, but do not expect this object to look incredible.


To find Sh2-155 in the night sky, first locate the constellation Cepheus, very close to the North Star Polaris. Once done, find the "triangle" shape on the North part of the constellation. The star you are looking for is the left base of the triangle. The Cave Nebula can be found just South of that bright star.




Processing of the Cave Nebula


I did not plan to be done with this image of the Cave Nebula so early. The original goal was to spend at least 50 hours of total exposure time, but the California fires have been raging for so long, and our sky hasn't been clear for weeks that I decided to finally be done with it. It is sad because I know that the OIII data was somewhat blurry, the stars would fluctuate so bad when going through the frames on Blink, but i decided to integrate them all anyway.


Processing Sh2-155 on PixInsight
Processing Sh2-155 on PixInsight

To process the Cave Nebula, I went through the processing workflow I always use for nebulae, which you can find HERE.


Just like you will see in the lessons and videos, I removed all the stars in the image prior to bringing out all the details and colors in the object. I then re-added the stars at the very end. You can see the starless version of this image below. All the weird brown dots you see in the image are artifacts from bright stars, which, this time, I wasn't willing to spend hours removing individually. I do of course go through how to remove those in the tutorial, where I process the Pelican Nebula.


The Cave Nebula Starless
A Starless Cave Nebula

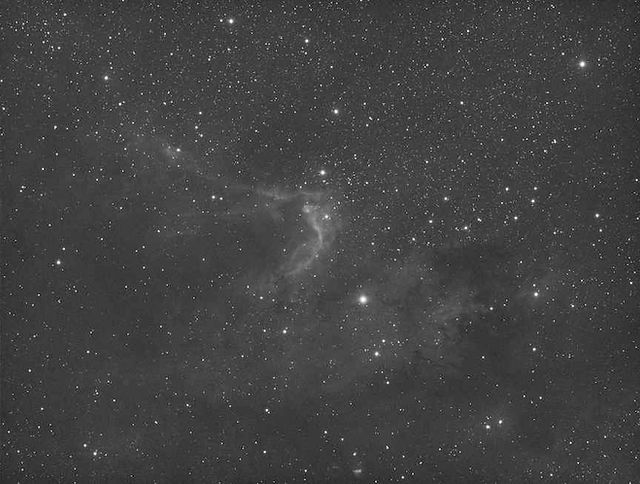

What did each narrowband channel look like?


Below you can see what each stacked frames looks like for the three narrowband channels. We used the following filters to capture Sh2-155:


  • Hydrogen Alpha (left) - Taken during the full moon

  • Sulfur II (center) - Taken at the beginning of the California fires

  • Oxygen III (right) - Taken through thin layers of smoke from the fires


As you can see, the OIII data is really bad, and the SII isn't that great either besides the center area. We shot with both of these filters when we knew there was a very thin layer of smoke in the sky.






Final Thoughts


The Cave Nebula was fun to shoot! The Hydrogen Alpha channel was really impressive, and we hope to soon re-shoot both SII and OIII on a very clear night and perhaps even from the desert, especially for OIII which lets some light pollution reach the sensor.


We are overall happy with this image, make sure to revisit this page when we upload more pictures of it!


Have you captured the Cave Nebula? Attach your image in the comments and let us know your acquisition details!


Make sure to follow us on Facebook, Instagram, and YouTube to stay up to date with our work!


Clear Skies,

Galactic Hunter
